You’re sitting there with a phone that has "okay" volume, but you want more. Maybe you’re at a park, or maybe you just like the idea of building something with your own hands. Building a DIY audio setup isn't just about sticking a phone in a Pringles can, though that actually works better than you’d think. It's about electromagnetism.
Most people assume speakers are these magical, high-tech devices that require a clean room and a degree in electrical engineering to understand. Honestly? They’re just magnets, wire, and something that can vibrate. If you can make a piece of paper move back and forth really fast, you’ve got sound.
The Physics of How to Make a Homemade Speaker Work
To understand how to make a homemade speaker, you have to understand the Lorentz Force. Don't let the name scare you. It’s basically just the relationship between electricity and magnetism. When you run an alternating current through a coil of wire, that coil becomes a temporary magnet.
If you place that "electromagnet" near a permanent magnet, they’re going to push and pull against each other. It’s exactly like trying to push two North poles of refrigerator magnets together. They resist. Now, imagine that happening thousands of times per second.
That vibration is useless if it’s just a tiny wire moving in the air. You need a diaphragm. In a professional speaker, this is the cone. In your living room, it’s probably a paper plate, a plastic cup, or even the bottom of a yogurt container. This "cone" grabs a big handful of air and shoves it toward your ears.
What You’ll Actually Need
Forget the fancy soldering irons for a second if you're just starting out. You can do this with stuff in your junk drawer. You’ll need some thin copper wire—magnet wire is best because it has a super-thin insulation coating. You need a permanent magnet. Neodymium magnets are the gold standard here because they are incredibly strong for their size, but a stack of ceramic magnets from a craft store will do the trick if you’re patient.
You also need a source. An old auxiliary (AUX) cable that you’re willing to sacrifice is perfect. We’re going to strip the ends of that cable to get to the copper inside.
Step-by-Step: The Paper Plate Method
First, take your copper wire. You need to wrap it around something circular that is just slightly larger than your magnet. A battery or a glue stick works well. Wrap it about 50 to 100 times. If you do too few wraps, the magnetic field won't be strong enough to move the plate. If you do too many, the resistance (impedance) might be too high for your phone or small amplifier to drive.
Leave a few inches of wire sticking out of both ends of the coil. Tape the coil so it doesn't unspool.
📖 Related: Limerick Generating Station: Why This Massive Powerhouse in Pennsylvania Actually Matters

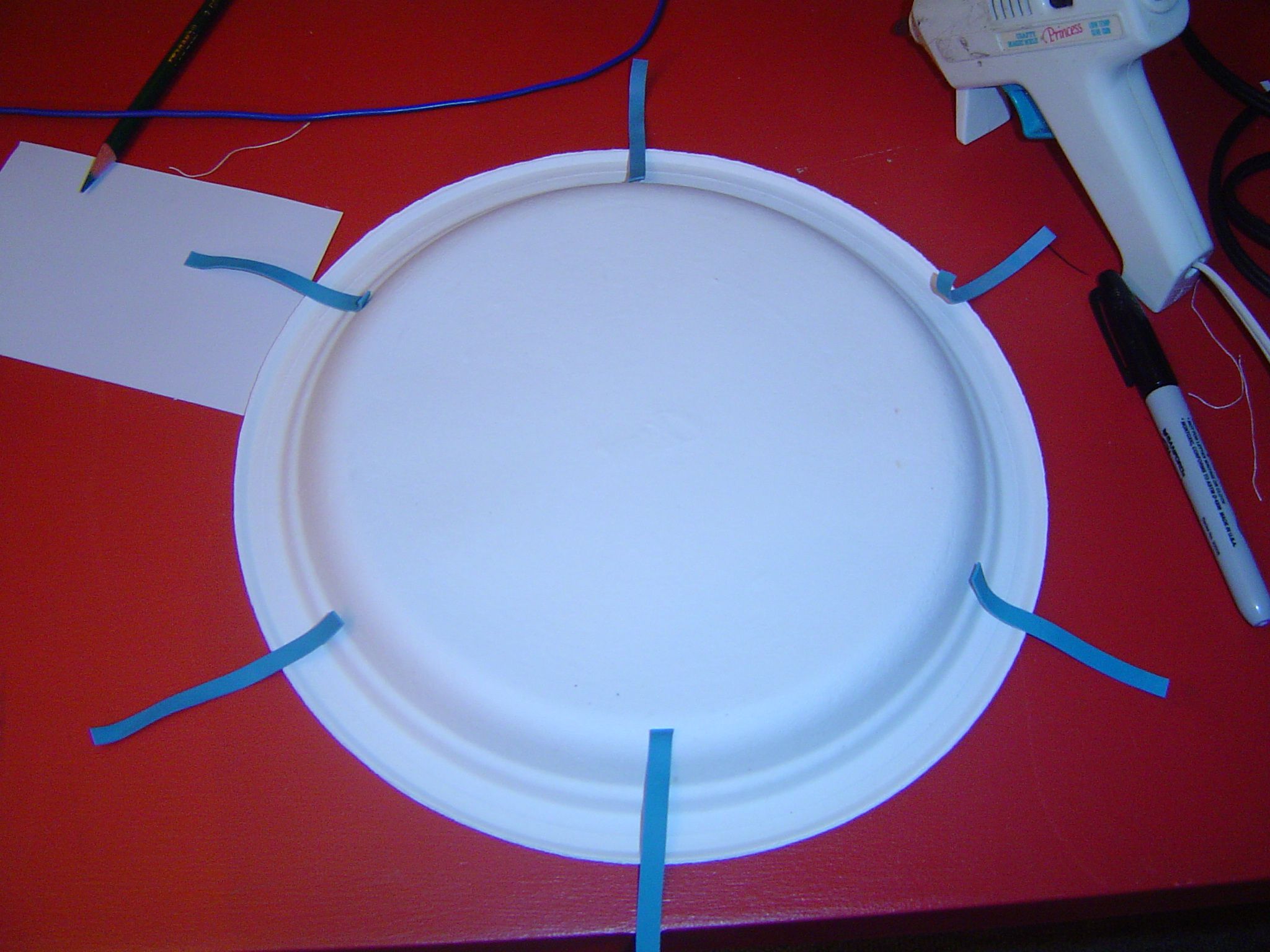

Now, grab a paper plate. This is your diaphragm. Tape that coil right in the dead center of the plate. This is the "voice coil."
The Magnetic Gap
This is where most people mess up. The magnet needs to be positioned right inside or right behind the coil, but it shouldn't be touching the coil so tightly that it can't move. You want a tiny bit of wiggle room.
I usually suggest gluing the magnet to a sturdy base—like a block of wood or a heavy book—and then suspending the paper plate over it. You can use folded strips of cardstock to create a "suspension" or "spider" that holds the plate up but allows it to bounce.
Hooking Up the Audio
Take your sacrificial AUX cable. Cut off one end. Inside, you’ll usually find three wires: red (right channel), white or green (left channel), and a bare copper wire (ground).
Since our DIY speaker is mono, you’ll pick one color (red or white) and the ground wire. Sand the tips of your magnet wire from the coil to remove the enamel insulation. If you don't sand it, the electricity won't flow, and you’ll just be sitting in silence wondering why it isn't working.
Twist the sanded magnet wire ends to the AUX cable wires. Tape them so they don't touch each other.
Plug it in.
Why Is It So Quiet?
You might notice the sound is barely audible. That’s because phones and laptops put out a very weak signal. They are designed to power tiny earbuds that sit right against your eardrum. To get real volume, you need an amplifier.
You can buy a cheap PAM8403 mini-amplifier board for about two dollars online. These things are tiny—the size of a postage stamp—but they can take a 5V power source (like a USB port) and boost your signal enough to actually fill a room.
The Acoustic Mystery of the Enclosure
If you leave your paper plate speaker sitting out on a table, it’s going to sound "tinny." There’s no bass. This happens because of phase cancellation.
When the plate moves forward, it creates a high-pressure wave in front and a low-pressure wave behind it. These waves wrap around the edge of the plate and cancel each other out. It’s a literal physical battle of air pressures.
To fix this, you need an enclosure. Even putting the plate over the top of a cereal box makes a massive difference. The box traps the "back wave" so it can't interfere with the sound coming off the front.
Real World Examples and Experts
Audio engineer Siegfried Linkwitz, famous for the Linkwitz-Riley filter, spent decades studying how sound radiates from different shapes. He proved that the "baffle" or the surface the speaker is mounted to is just as important as the speaker itself. In our DIY case, the size of your paper plate or the box you use is your baffle.
Common Pitfalls and Troubleshooting
If it’s not working, check your connections. That enamel coating on magnet wire is sneaky. It looks like bare copper, but it’s actually covered in a clear resin. You really have to scrape it off with a hobby knife or burn it off with a lighter until the wire looks dull.
Another issue is the magnet strength. If you’re using a weak refrigerator magnet, the force won't be enough to move the mass of the plate. Switch to a Neodymium magnet. You can find these inside old hard drives if you’re feeling extra "maker-ish" today.
Also, watch your impedance. Most consumer electronics expect a 4-ohm or 8-ohm load. A handmade coil might have very low resistance, which can sometimes make an old phone’s protection circuit kick in and shut off the audio jack. If that happens, you definitely need that external amplifier.
Beyond the Paper Plate: Advanced Materials
Once you’ve mastered the basic how to make a homemade speaker process, you can start experimenting. Try using a thin sheet of Styrofoam. It’s incredibly light and rigid, which is why some high-end flat-panel speakers use similar materials.
Or, try a "transduction" approach. Instead of a plate, glue your coil directly to a window or a hollow-core door. The entire surface becomes the speaker. It’s a weird, ghostly feeling to hear music coming out of a solid piece of wood.
Safety First
Don't go plugging your DIY coil directly into a high-powered home theater receiver. You’ll probably smell smoke. Those amps put out enough juice to melt thin magnet wire or fry the voice coil if it’s not properly cooled. Stick to small 5V or 12V hobbyist amps.
Practical Next Steps
Go find an old cardboard box and some wire. Start by winding your coil. Don't worry about making it look pretty—function over form is the rule here.
- Find a cylinder about 1 inch in diameter.
- Wind 60 turns of 30-gauge magnet wire.
- Tape it to the bottom of a plastic party cup.
- Place a strong magnet inside the cup, resting on a table, so the coil surrounds it but doesn't touch it.
- Connect your audio source through a small $5 amplifier.
The first time you hear a muffled, scratchy version of your favorite song coming out of a literal piece of trash, it feels like magic. It’s the closest you’ll get to feeling like Alexander Graham Bell in your own kitchen.
Once you get a clear sound, try different "cone" materials. A plastic bowl sounds different than a piece of parchment paper. A heavy glass jar won't work at all because it's too heavy for the magnets to move. Experimentation is the whole point. Build it, break it, and then build a better one.
